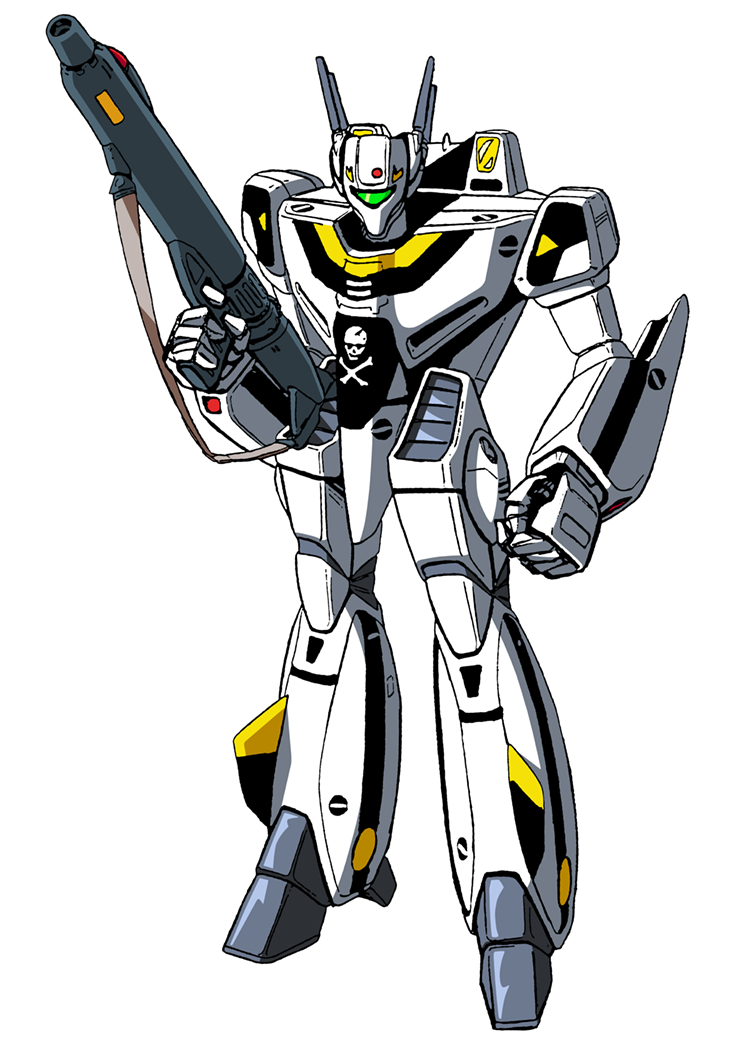

VF-1S in Battroid mode (Roy Focker Colors)
VF-1S in Fighter mode (Roy Focker Colors)

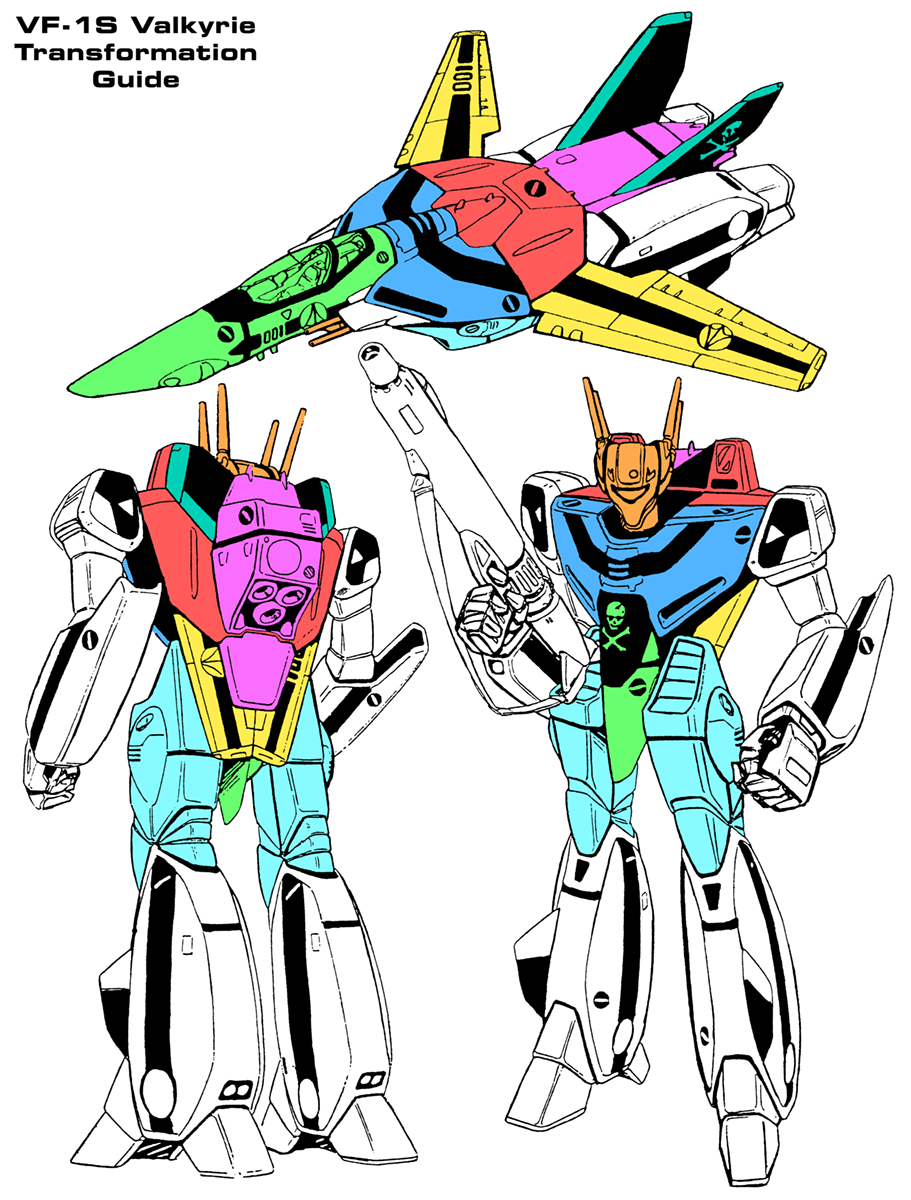

Color Code Transformation Guide

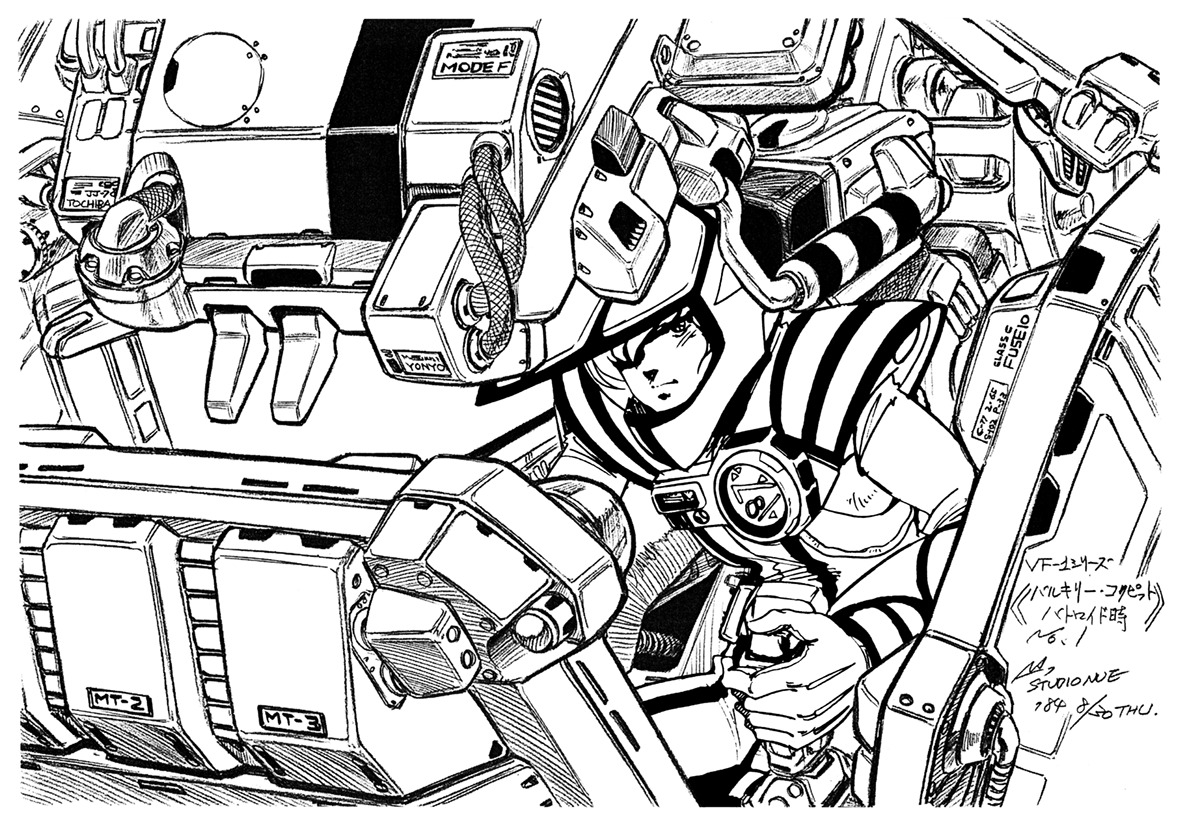

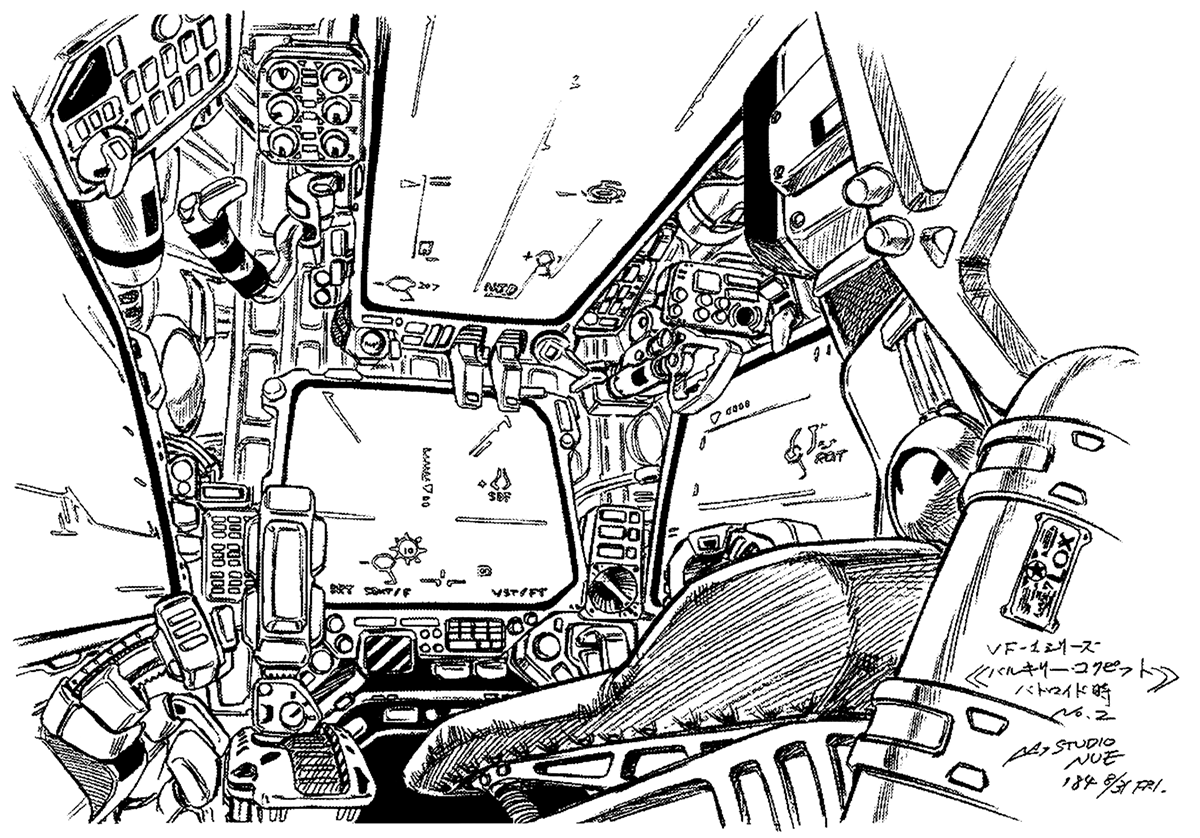

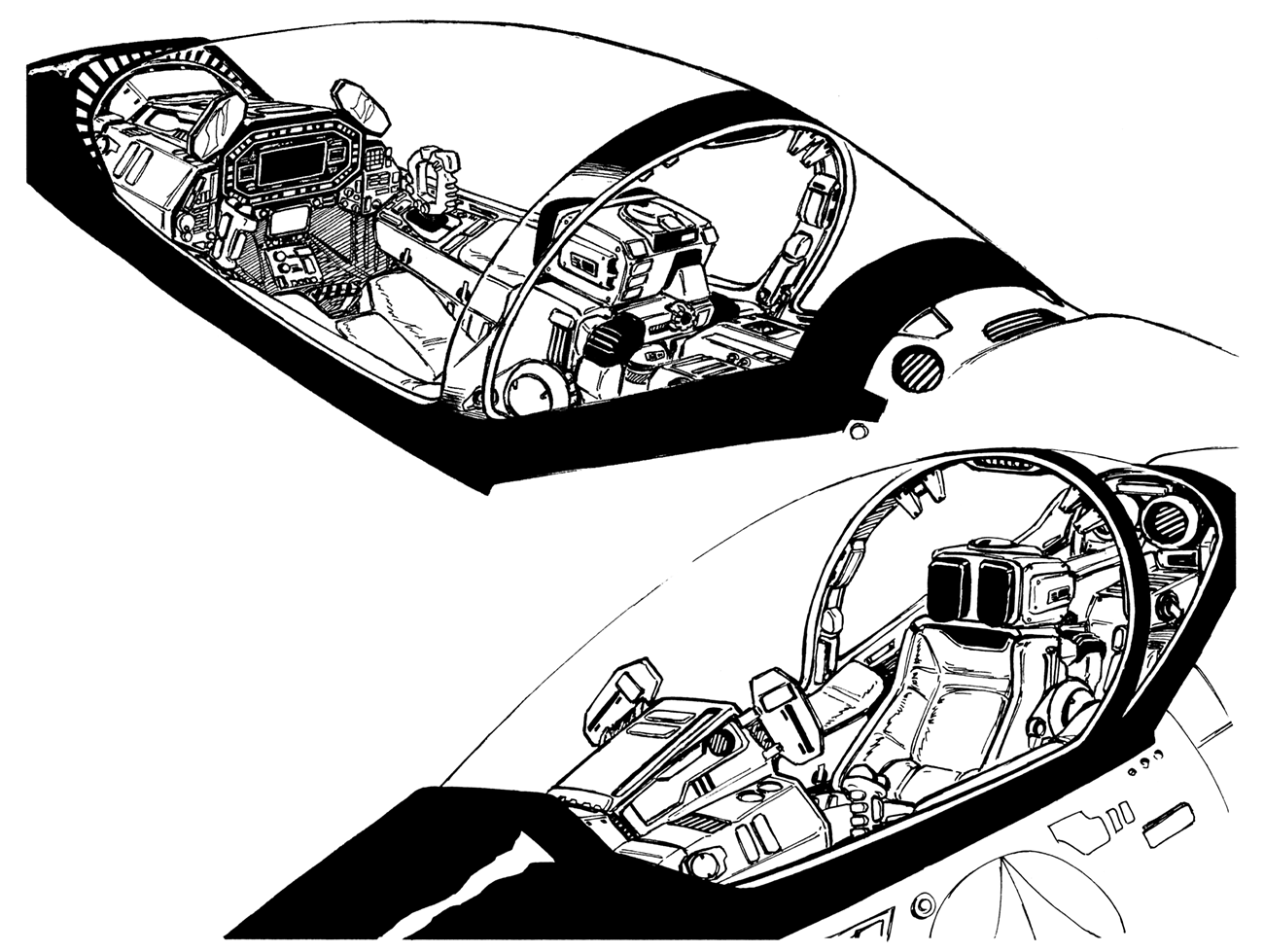

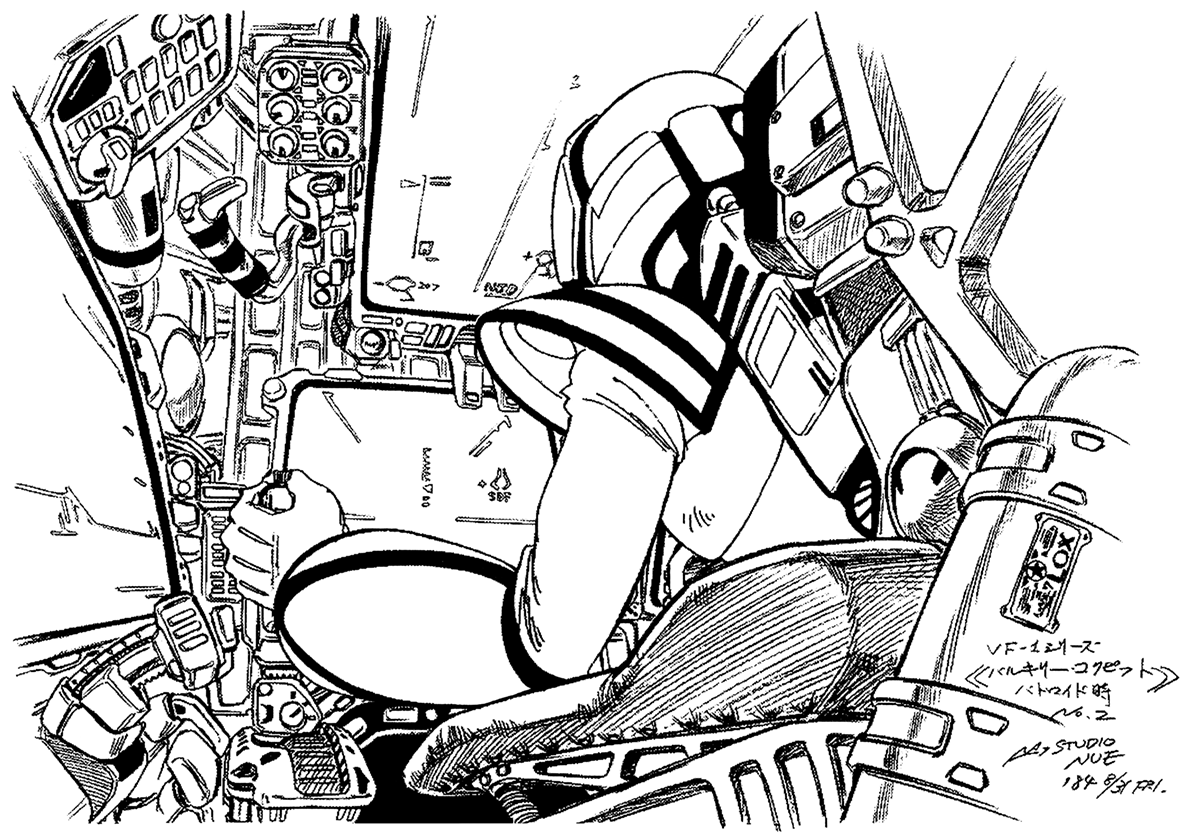

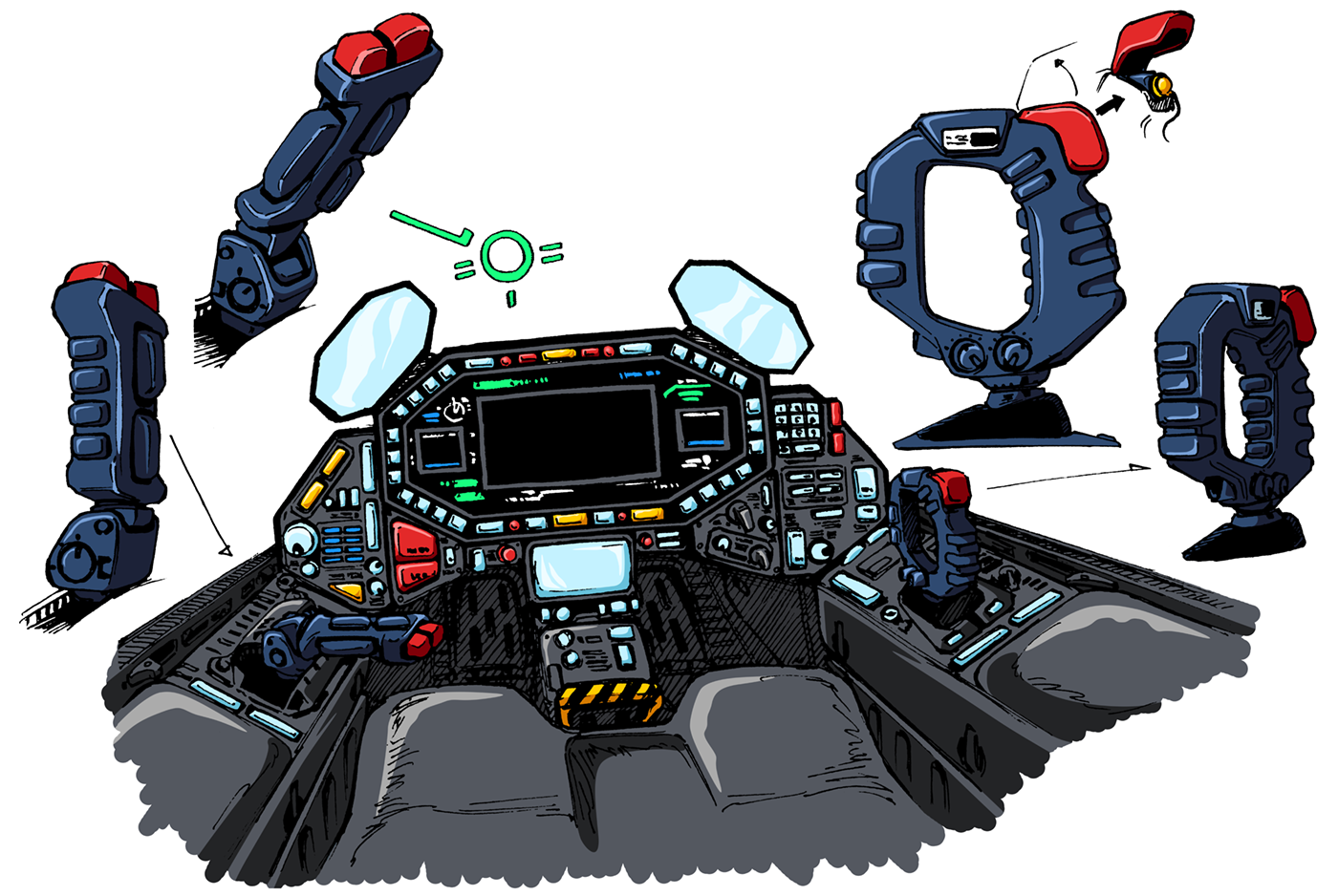

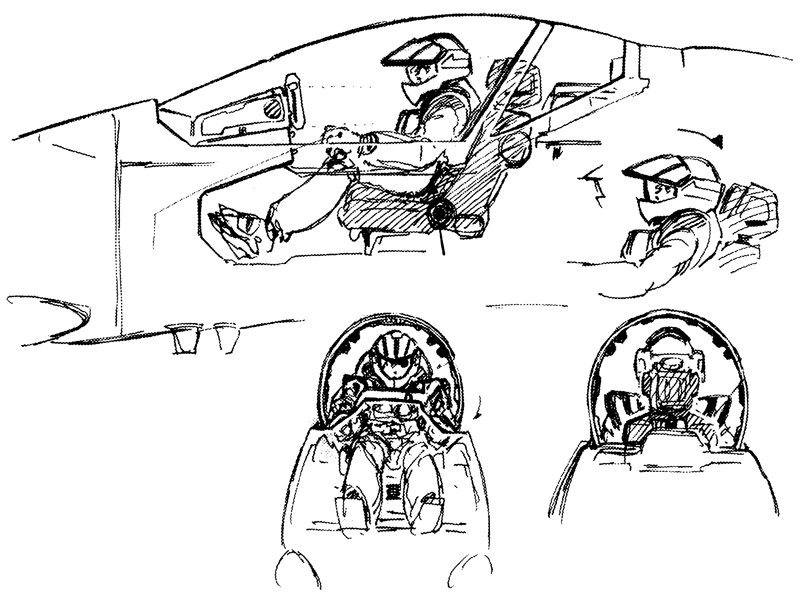

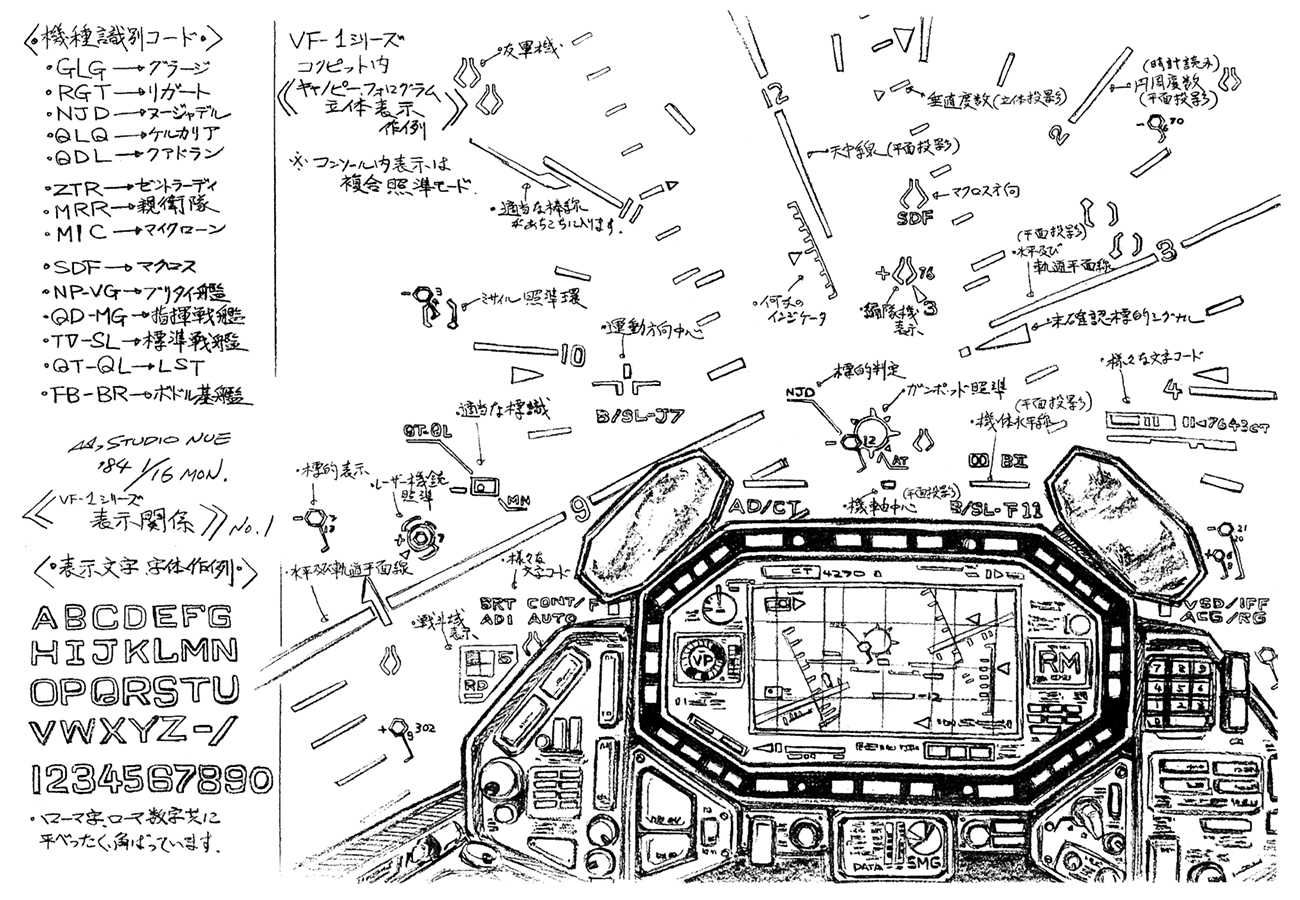

Block 6 Cockpit (Fighter Mode)

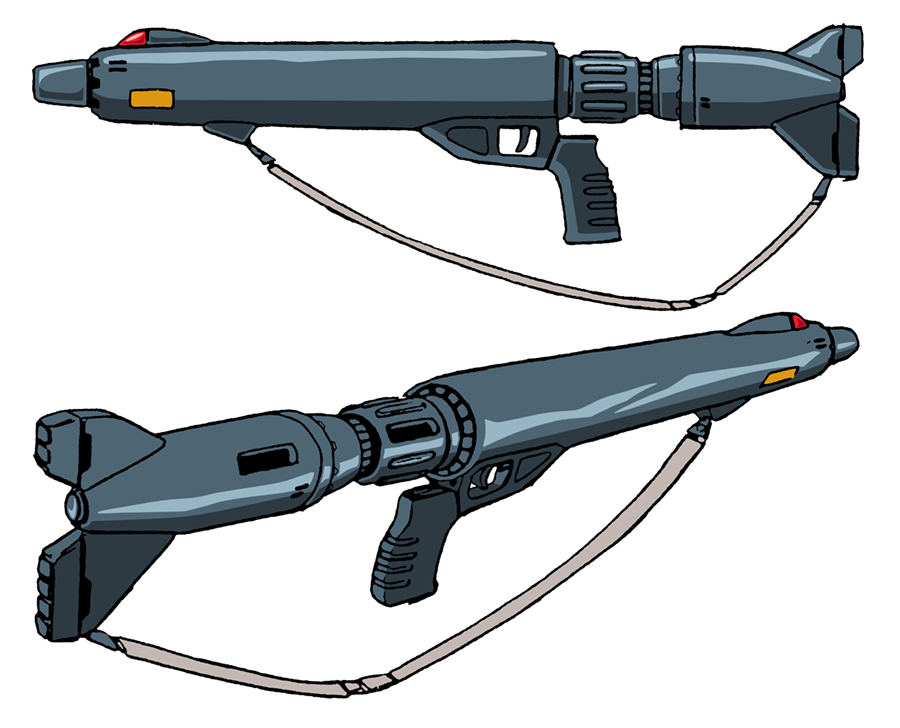

GU-11 55mm Gatling Gun Pod

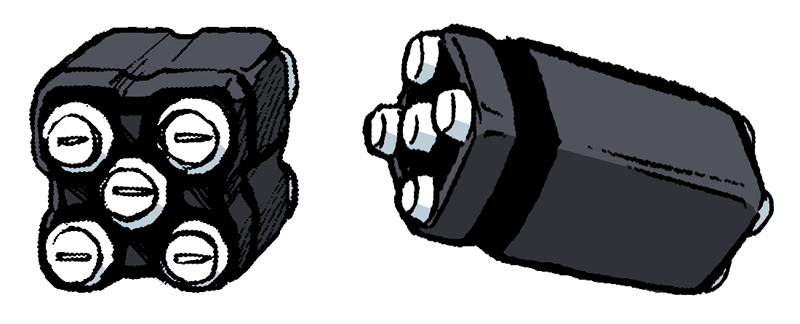

UUM-7 Micro Missile Pod
|
Northrom VF-1S Valkyrie (Film Version)
Equipment Type: all-environment variable fighter and tactical combat battroid
Government: U.N. Spacy, U.N. Navy, U.N. Space Air Force
Manufacturer: Northrom
Cost: not publicly disclosed, but reported as approx 20 times that of a standard Destroid.
Introduction: November 2007
Operational Deployment: 2009 February 7

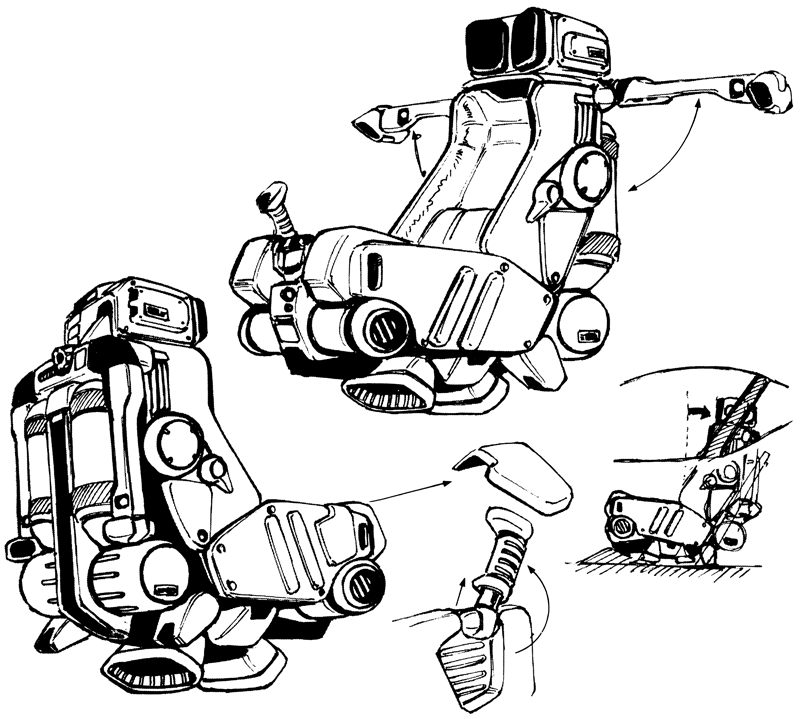

Accommodation: pilot only in Marty & Beck Mk-7 zero/zero ejection seat
Dimensions:

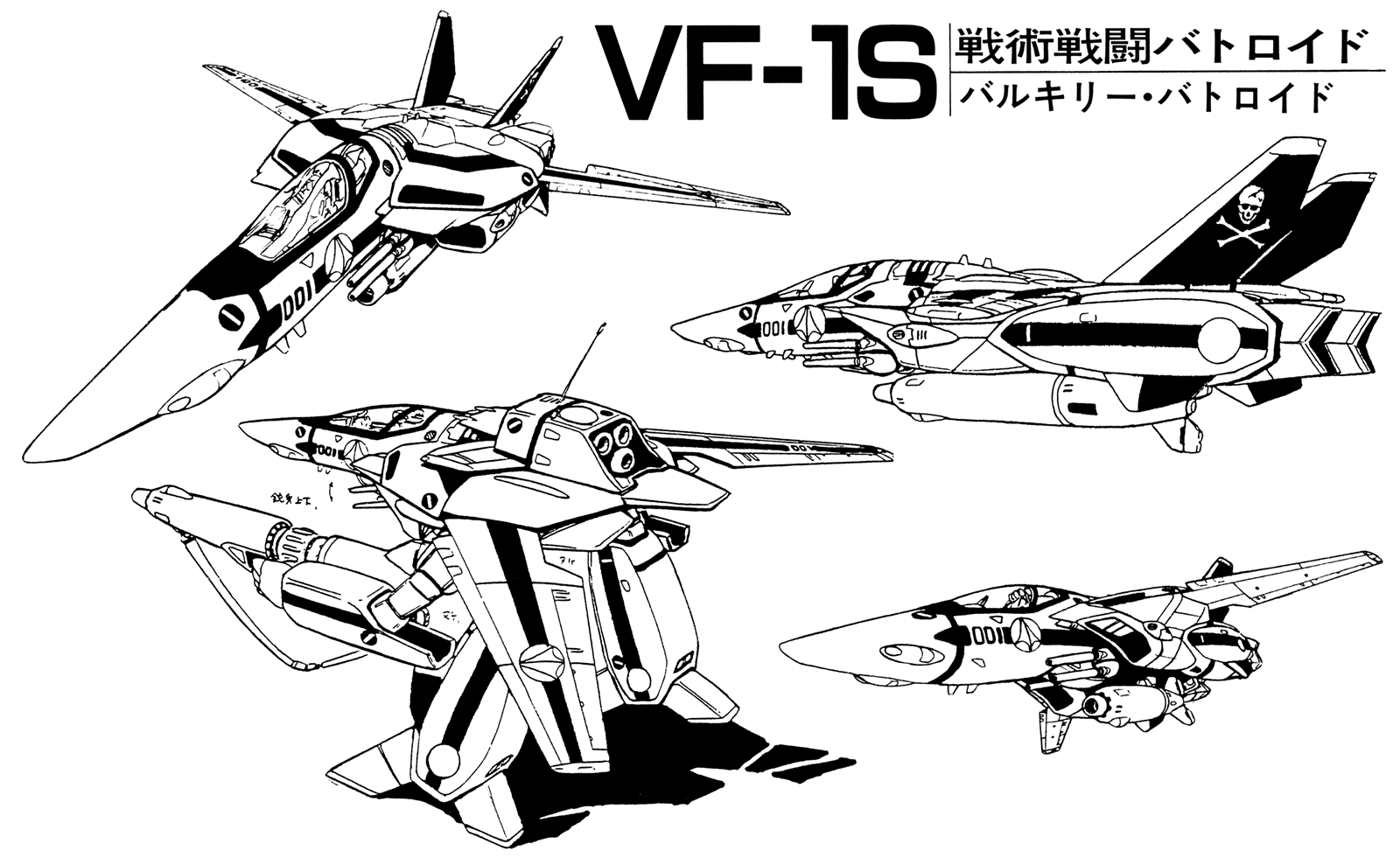

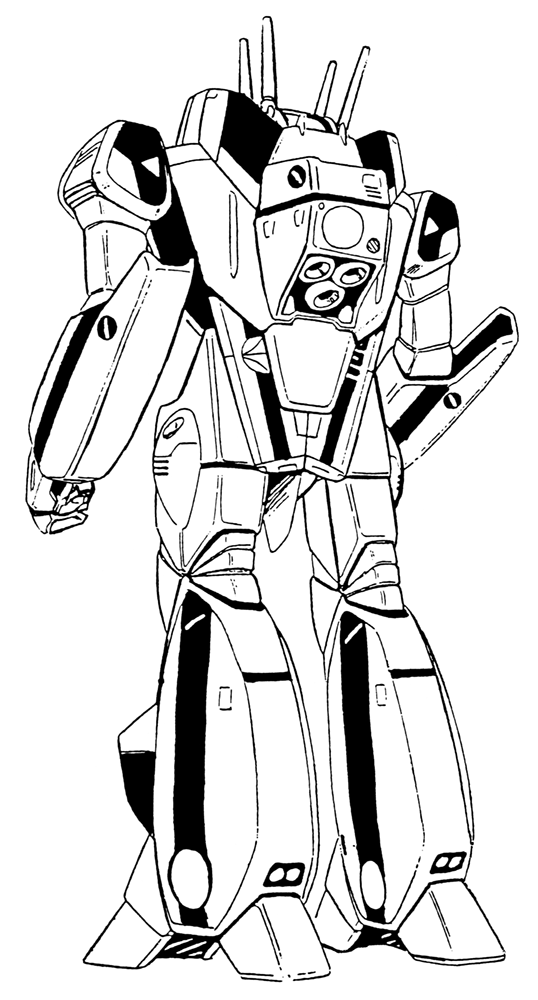

Battroid Mode: height 12.68 meters; width 7.3 meters; length 4.0 meters
Fighter Mode: wingspan 14.78 meters (fully extended); height 3.84 meters; length 14.23 meters
GERWALK Mode: wingspan 14.78 meters (fully extended); height 8.7 meters; length 11.3 meters
Mass: empty 13.25 metric tons; standard T-O 18.5 metric tons
Structure: space metal frame, SWAG energy conversion armor
Power Plant: two Shinnakasu Heavy Industry/P&W/Roice FF-2001D thermonuclear reaction turbine engines, output 650 MW each

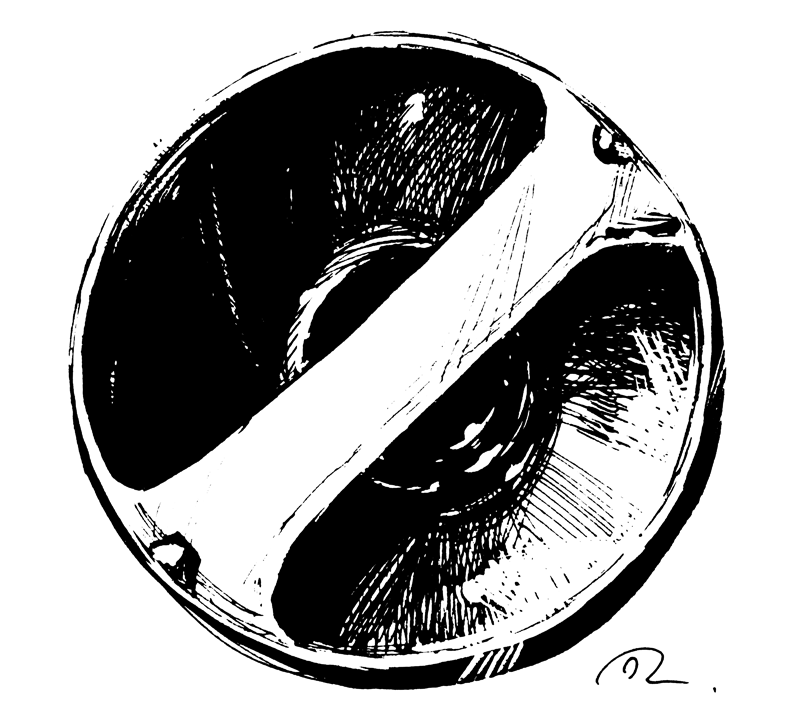

Propulsion: estimated 12,500 kg [x g] x 2; or estimated 25,000 kg [x g] x 2 in overboost (245.25 kN x 2 overboost); 4 x Shinnakasu Heavy Industry NBS-1 high-thrust vernier thrusters (1 x counter reverse vernier thruster nozzle mounted on the side of each leg nacelle/air intake, 1 x wing thruster roll control system on each wingtip); vernier thrusters with chemical fuel tanks (within backpack section for GERWALK and Battroid modes); 18 x P&W LHP04 low-thrust vernier thrusters beneath multipurpose hook/handles
Thrust-to-weight ratio (VF-1A): empty 3.47; standard T-O 2.49; maximum T-O 1.24
Performance:
Battroid Mode: maximum walking speed 160 km/h
Fighter Mode: at 10,000 m Mach 2.71; at 30,000+ m Mach 3.87
GERWALK Mode: maximum walking speed 100 km/h; flying 500 km/h
g limit: in space +7

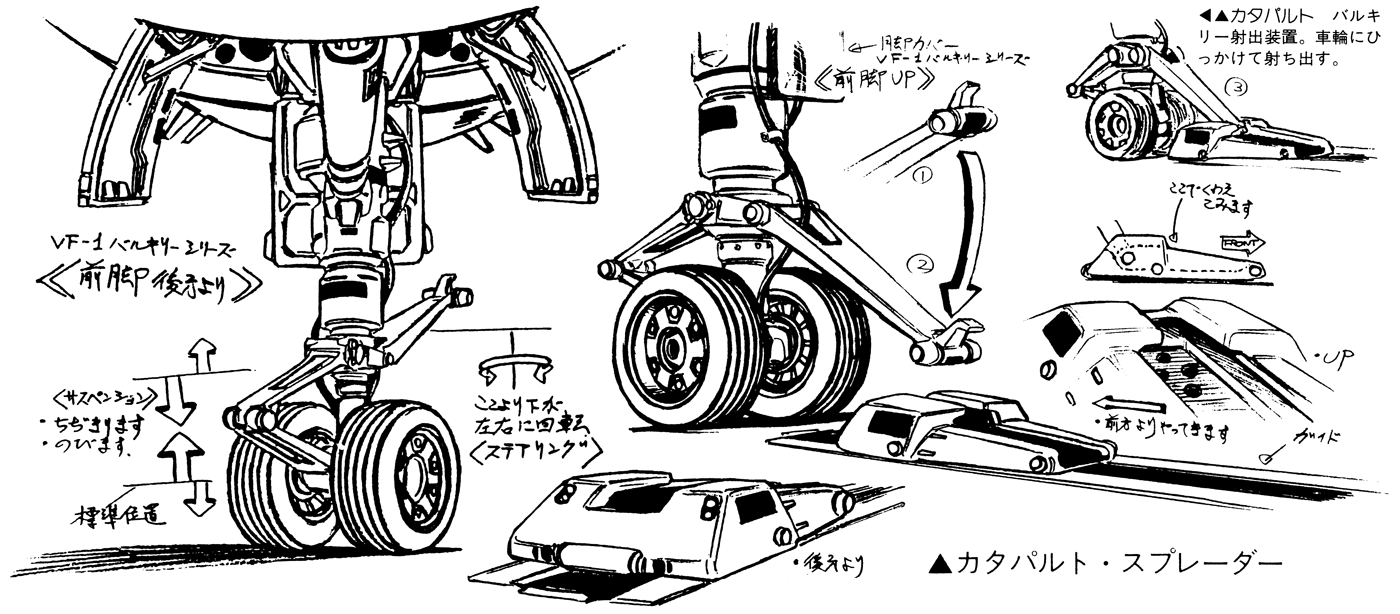

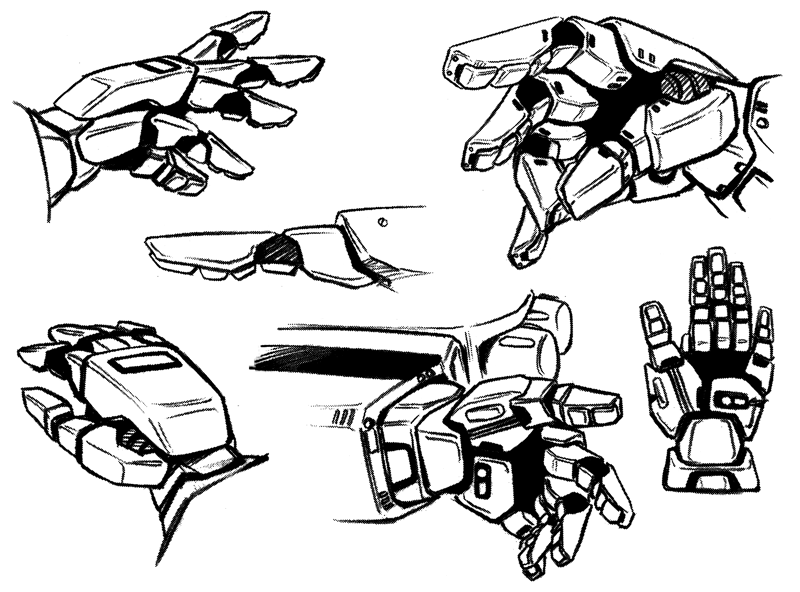

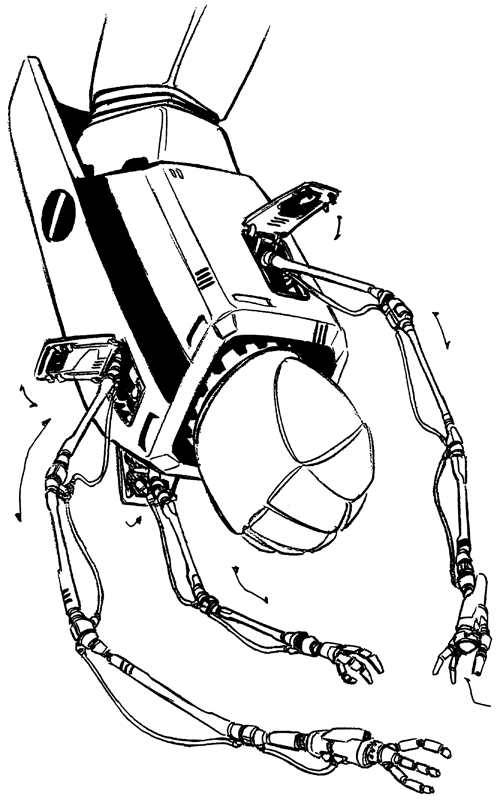

Design Features: 3-mode variable transformation; variable geometry wing; vertical take-off and landing; control-configurable vehicle; fly-by-light; rectangular underfuselage air intakes with intake vane, variable ramps, and retractable cover shutters (for Battroid mode or space use); single-axis two-dimensional thrust vectoring nozzles operate in lieu of conventional elevators and horizontal stabilizers and in tandem with wing thruster roll control system; one ventral fin under each engine nacelle; large airbrake directly rear of cockpit canopy (nozzle feet operate as airbrakes also); two-section flap (with spoiler) and fowler flap occupy almost entire wing trailing-edge; leading-edge slats; conventional rudders with honeycomb construction in outward-canted vertical tail surfaces; two cooling sub-air intake/airframe lift adjustment slits located on forward main body in Fighter mode operate in lieu of glove vanes by controlling airflow; four times the mobility of the Destroid Spartan; three "magic hand" manipulators for maintenance use; retractable canopy shield for Battroid mode and atmospheric reentry; retractable tricycle undercarriage (landing gear) with two steerable nosewheels retract rearward into nose and twin coupled mainwheels inward into fuselage; 2 x arresting hooks mounted underfuselage on engine nacelles; 2 x forward-looking infrared (FLIR) sensors in recessed emplacements within leg-joint nacelles (built below and to the fore of the cockpit canopy in egg-shaped blisters on either side of the Fighter mode nosecone); VF-1S enhanced avionics suite; option of GBP-1S system, atmospheric-escape booster, or FAST Pack system
Transformation:
Min time from Fighter to GERWALK (automated): approx. 1.5 sec.
Min time from GERWALK to Battroid (automated): under 2 sec.
Standard time from Fighter to Battroid (automated): under 5 sec.
Min time from Fighter to Battroid (manual): 0.9 sec.
- Armament -
Guns:
4 x Fixed Mauler RÖV-20 anti-aircraft laser cannons, each firing 6,000 pulses per minute
1 x Howard GU-11 55 mm three-barrel Gatling gun pod with 200 rds fired at 1,200 rds/min
Bombs & Missiles:
4 x underwing hard points for 12 x AMM-1 hybrid guided multipurpose missiles (3/point)
or 12 x MK-82 LDGB conventional bombs (3/point)
or 6 x RMS-1 large anti-ship reaction missiles (2/outboard point, 1/inboard point)
or 4 x UUM-7 micro-missile pods (1/point) each carrying 15 x Bifors HMM-01 micro-missiles
or a combination of above load-outs
Optional Armament:
Shinnakasu Heavy Industry GBP-1S ground-combat protector weapon system
or Shinnakasu Heavy Industry FAST Pack augmentative space weapon system
|
The VF-1S Valkyrie, as it appears in the film, is identical to the version seen in television save for minor hull color differences (most notably the colored "arrows" on either side of the head). The majority of VF-1 variable fighters in the Macross film appear with FAST Packs equipped, but those sequences featured in the atmosphere show VF-1 fighters sans FAST Packs. In the film, Roy's VF-1S never appears without the "Strike" system equipped, but this VF-1S version without added equipment is included here simply because the line art was available. It is important to note that VF-1 fighters in the Macross movie are never seen using AMM-1 missiles from the television series and are instead armed with UUM-7 Micro Missile pods, even when deployed in the atmosphere.
|
Debut: Super Dimension Fortress Macross: Do You Remember Love?
Pilot(s): Roy Focker, Hikaru Ichijo, Maximillian Jenius
Other Appearances: Super Dimension Fortress Macross
Original mechanical designer: Shoji Kawamori, Kazutaka Miyatake (cockpit)
|
Information Courtesy of the Macross Compendium: www.macross.anime.net/wiki/Main_Page
